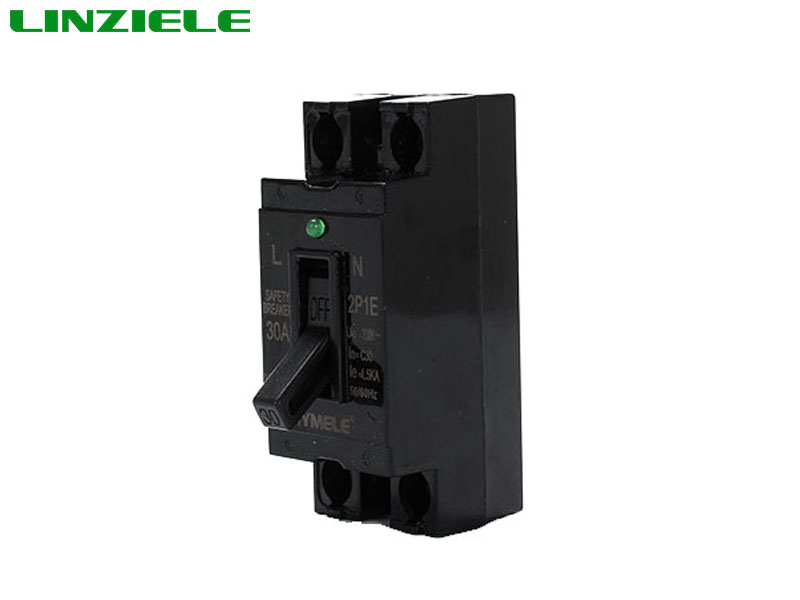

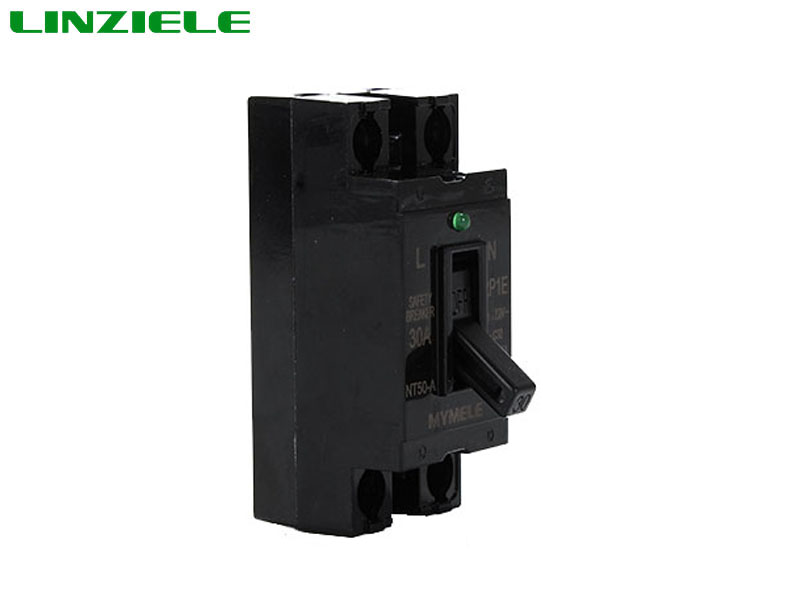

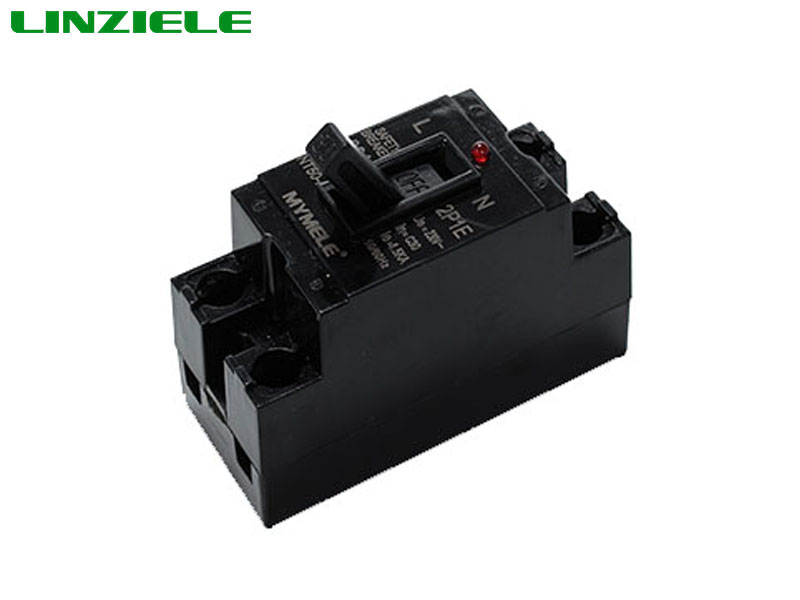

009: NT50 miniature circuit breaker with thin black handle and mid-light is mainly used in the lining system of 50/60Hz with rated voltage 110 -230V and rated current up to 30A.it’s used to protect the circuit from overload damaging happens. This product complies with standard of IEC60898.
Main technical Parameter
Frame current, Inm(A) | 30AF | |
Type | NT50 | |
Pole&element | 2P1E | |
Rated insulating voltage, Uimp (kV) | 2.5 | |
Rated current, In (A) | 10,15,20,30 | |
Rated working Voltage, Ue(V) | AC230/110 | |
Breaking capacity, Ic(A) | 1500 | |
Overload characteristics | 1.13 In(cold state) not acting time | +30℃,≥1h |
1.45 In(heat state) acting time | +30℃,<1h | |
2.55 In(cold state) acting time | 1s<t<60s | |

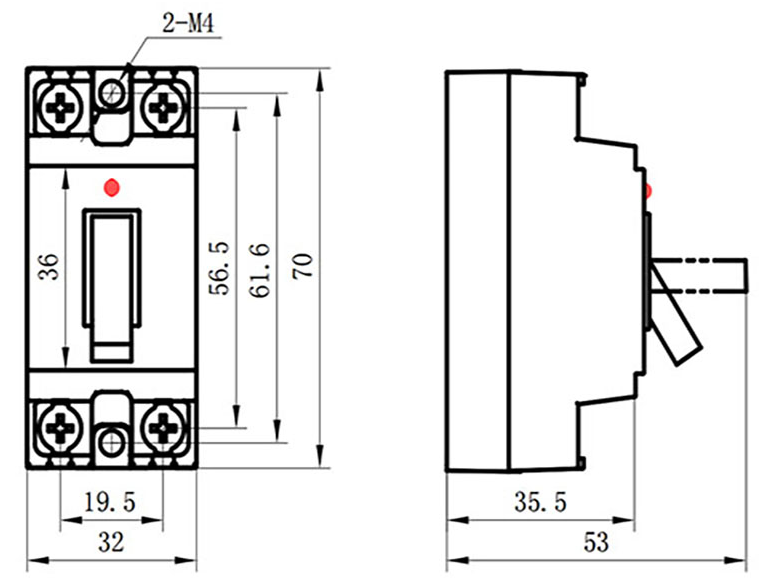

Outline dimensions and mounting dimensions.
