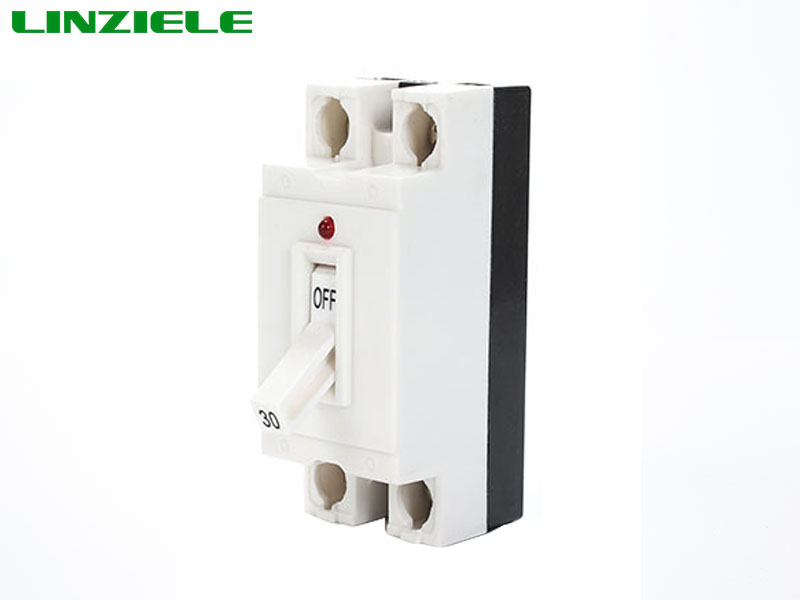

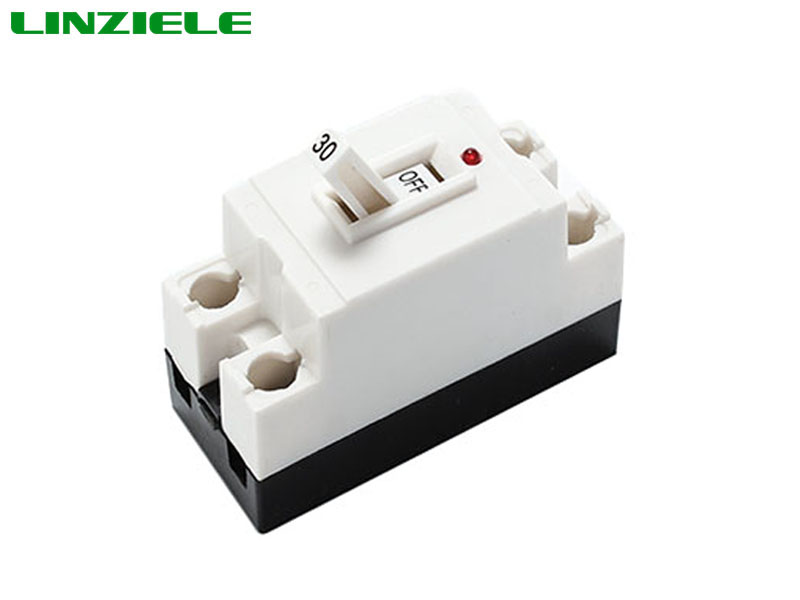

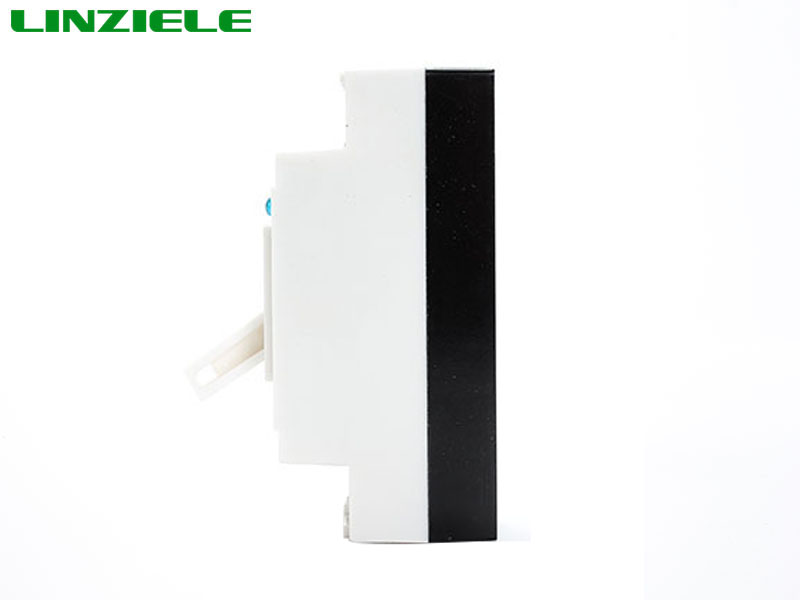

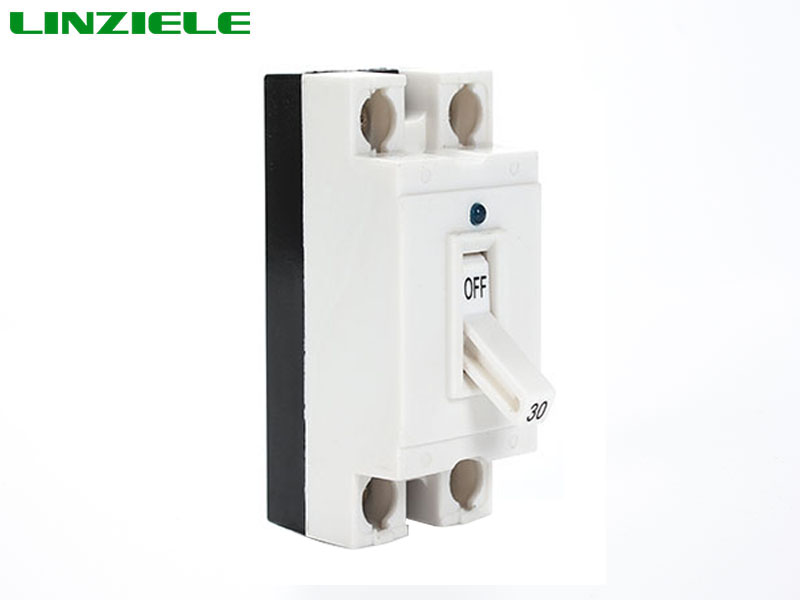

008: NT50 safety breaker with thin white handle and mid-light is a popular type which is mainly used in the circuit of 50/60Hz with rated voltage110 -230V and rated current from 6 to 30A. The breaker is commonly used in architectural and residual lining system for overload circuit protection. It complies with IEC60898 standard.
Main technical Parameter
Frame current, Inm(A) | 30AF | |
Type | NT50 | |
Pole&element | 2P1E | |
Rated insulating voltage, Uimp (kV) | 2.5 | |
Rated current, In (A) | 10,15,20,30 | |
Rated working Voltage, Ue(V) | AC230/110 | |
Breaking capacity, Ic(A) | 1500 | |
Overload characteristics | 1.13 In(cold state) not acting time | +30℃,≥1h |
1.45 In(heat state) acting time | +30℃,<1h | |
2.55 In(cold state) acting time | 1s<t<60s | |

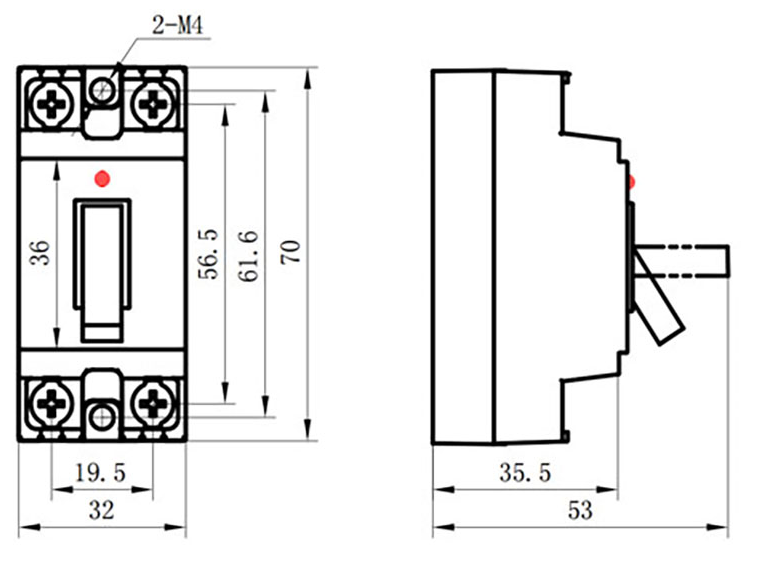

Outline dimensions and mounting dimensions.
