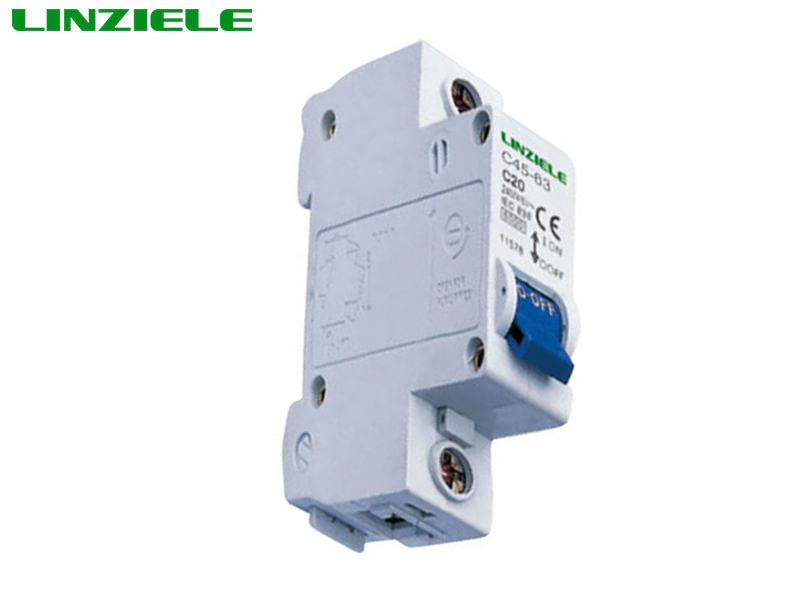

LZC45-63 High breaking mini circuit breaker is mainly used for overload and short-circuit protection. It works in the circuit of 50/60Hz, AC 230/400V with rated current from 1A to 63A. The breaker can be used as a leakage breaker by assembling with leakage tripper. It confirms with IEC60898 standard
contact us0086-15306888555
LZC45-63 High breaking mini circuit breaker is mainly used for overload and short-circuit protection. It works in the circuit of 50/60Hz, AC 230/400V with rated current from 1A to 63A. The breaker can be used as a leakage breaker by assembling with leakage tripper. It confirms with IEC60898 standard.
Main technical data
Rated current In | 1A-63A |
Pole number | 1P,2P,3P,4P |
Rated voltage Ue | AC230/400V |
Rated frequency | 50/60Hz |
Rated breaking capacity | 3KA/4.5KA |
Tripping characteristics | B,C,D |
Mechanical life | 10000 times |
Electrical life | 4000 times |

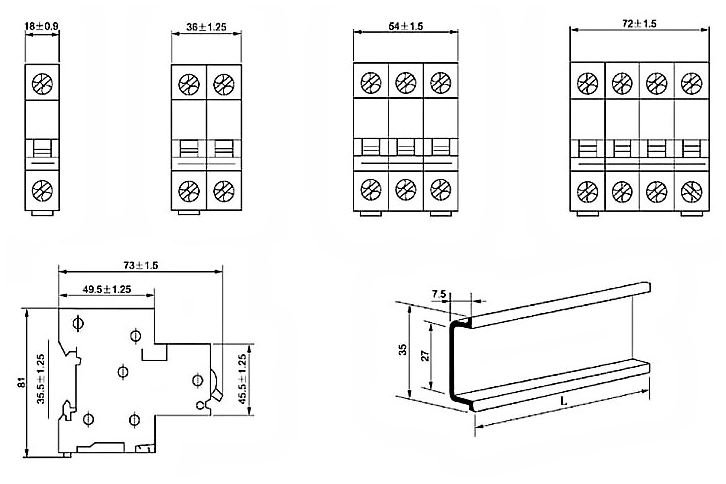

Installation chart
