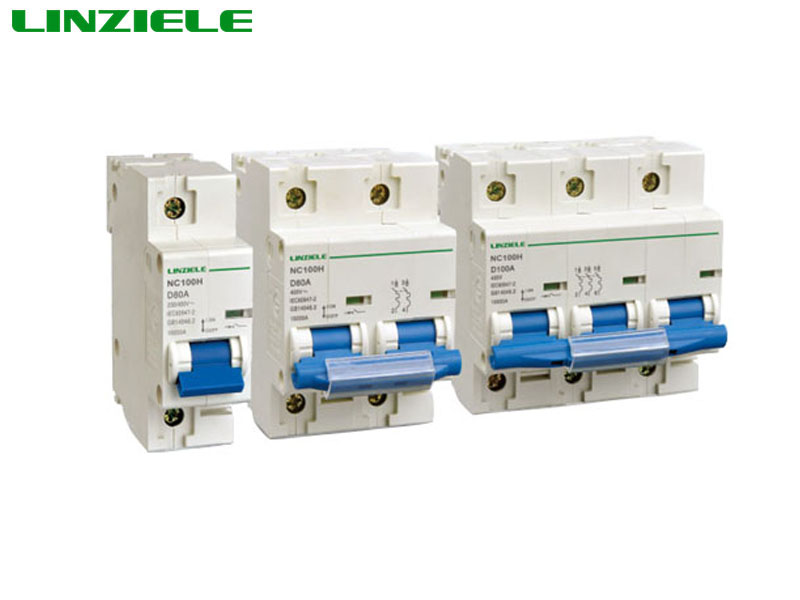

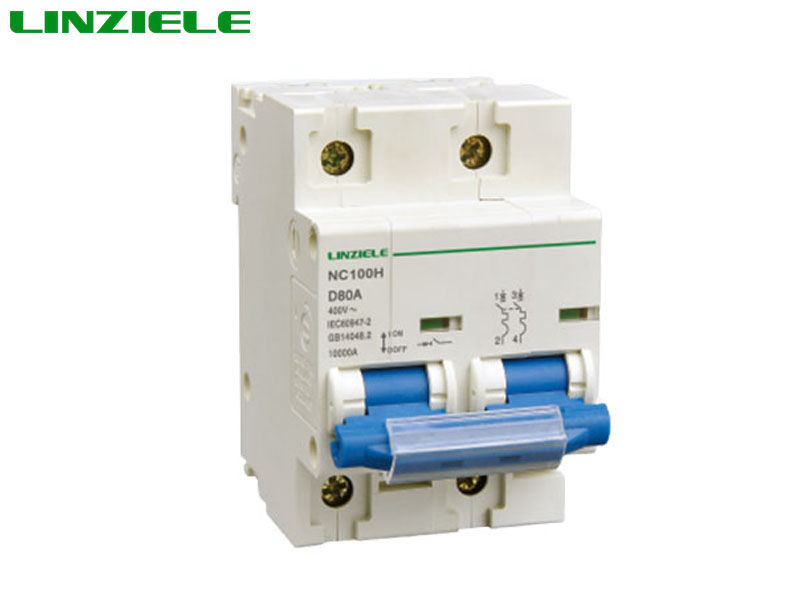

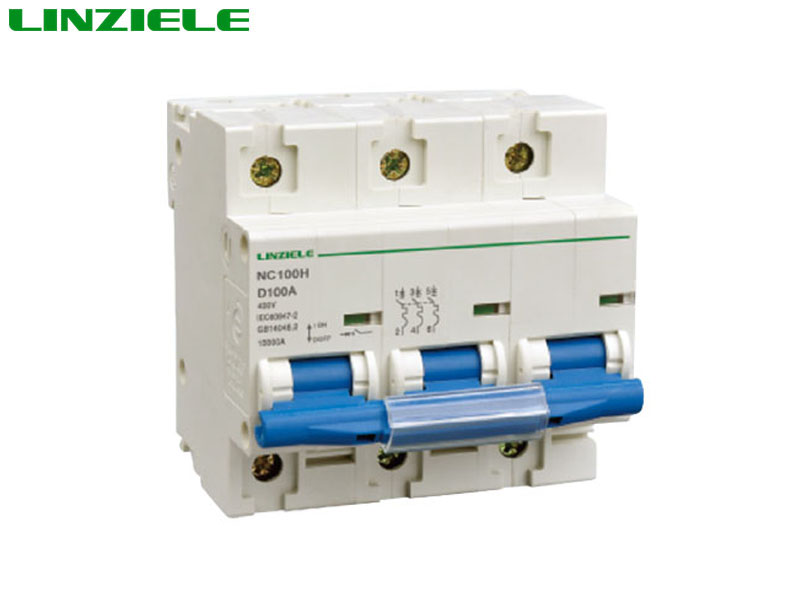

NC-100H mini circuit breaker is mainly used to protect line-conductor and overload and short-circuit of small sealed motors with circuit of AC230/400V and 50/60Hz and for infrequent conversion under normal condition. The breaker can be used as a leakage breaker by assembling with leakage tripper.
Technical data:
Rated voltage | 230/400V |
Rated current | 63A, 80A,100A,125A |
Breaking capacity | 10KA |
Mechanical and electrical life | 20000 times |
No of pole | 1P,2P,3P,4P |
According to standards | IEC60947-2 |

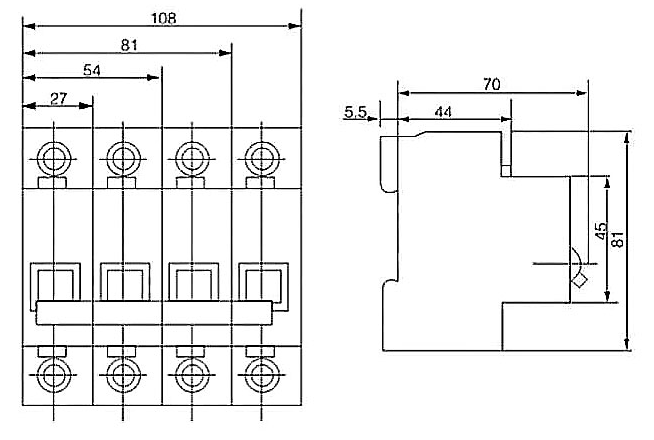

Dimension
