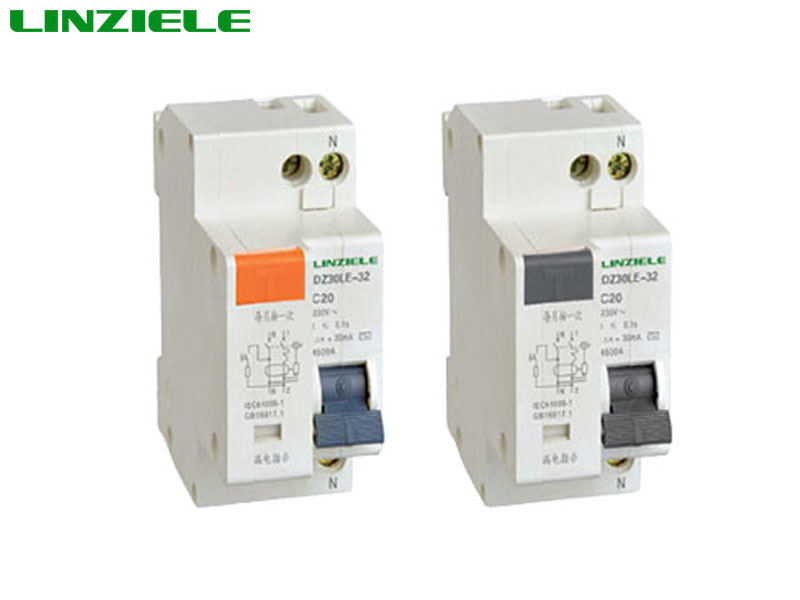

DZ30 DPN（DPN&DPNL）
The product is applicable to protect line conductor and overload and short circuit of small sealed motors. It is mainly for protection of circuit with AC 220V and 50/60Hz, and for infrequent conversion under normal conditions as well. Its action can be up to two pole with only one pole volume and be used as a leakage breaker byassembing with leakage. It comply with IEC60898 standard.
Model | DZ30 DPN |
Rated current | 6,10,16,20,25,32 |
Rated voltage | 230/400V |
Short circuit breaking cap | 3KA |
Standard | IEC60898 |
Pole | 1P+N |
Endurance | ≥40000 |
