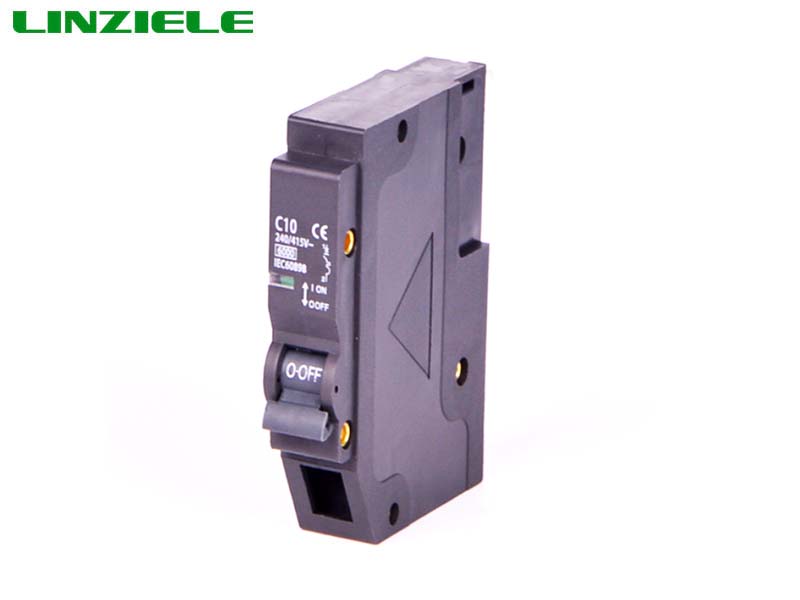

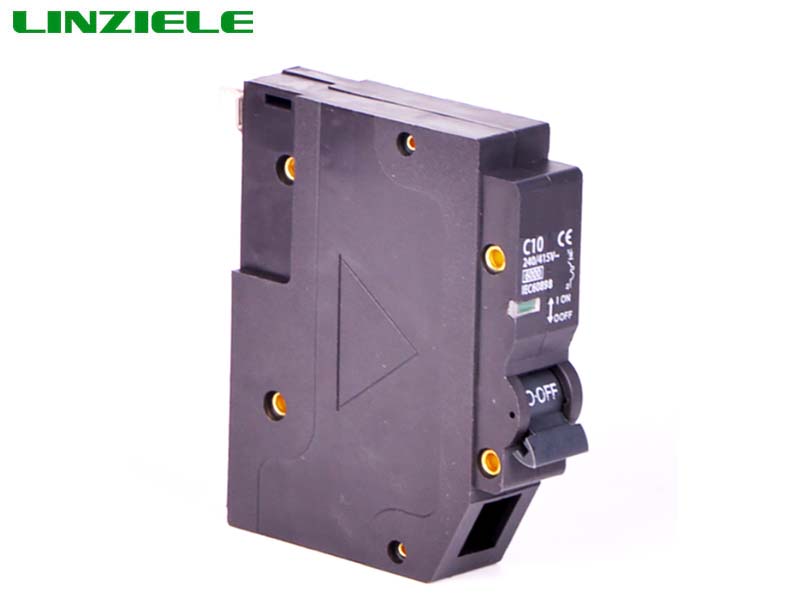

BH MCBprotect electrical circuits against overload and shortcircuit current. They provide ON-OFF switching easily. MCB is applicable to electric circuits with rated voltage 230/400V AC, frequency 50/60Hz and rated current up to 60Amp. The product provides protection against overload and short circuit to electric circuits and equipments in household and commercial installations. MCB is also used as non-frequent changeover of electric circuits. It sells very well in Mexico Market. Complys withIEC60898standard.
Model | BH MCB |
Poles | 1,2,3,4 |
Rated current(In) | 1,2,3,4,6,10,16,20,25,32,40,50,63 |
Rated voltage(Un) | AC230/400V |
Rated frequency | 50/60Hz |
Curve | B,C,D |
Magnetic release | B Curve:between 3and 5 In |
C curve: between 5and 10In | |
D curve: between 10 and 14In | |
Electric life | 6000 |
Installation | Plug-in |
