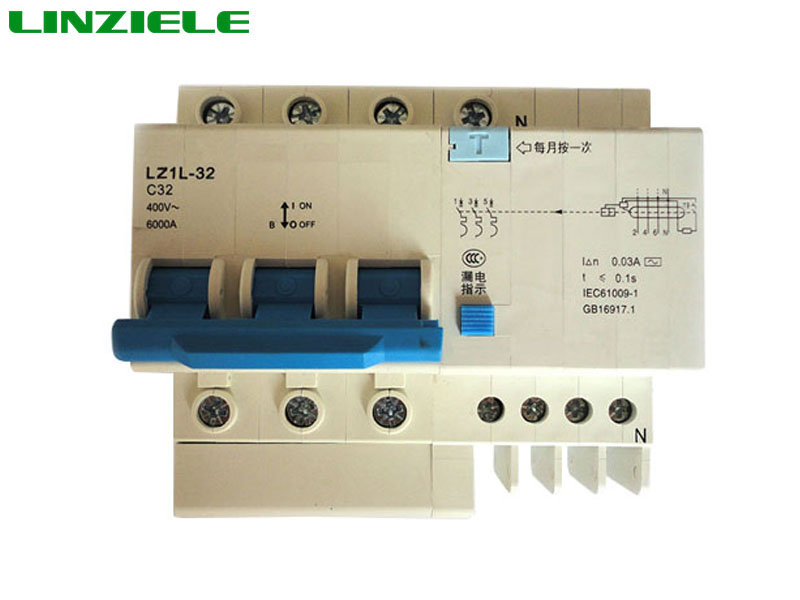

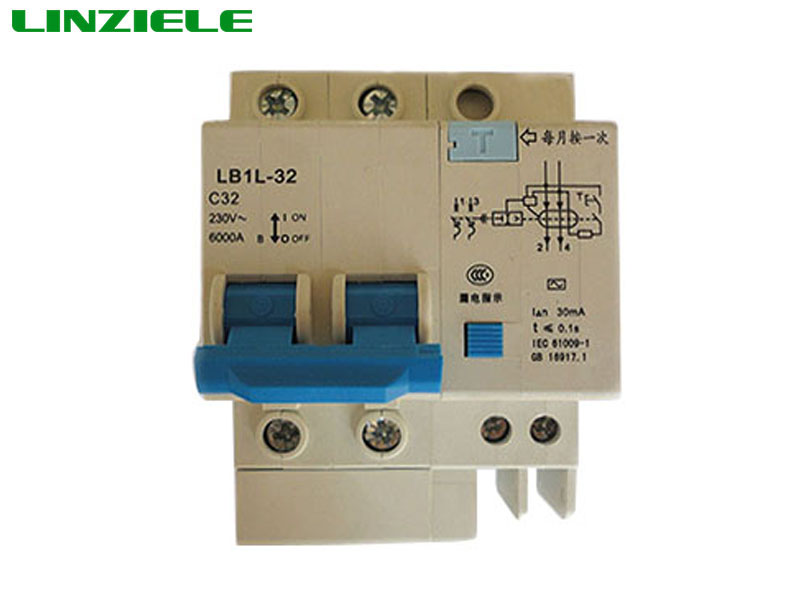

Earth leakage Circuit Breaker is a multi-functional protection devicesused to protect against electrical leakage in the circuit of 50/60Hz,rated voltage 230/400V,rated current up to 63A.When electirc shock happens or the residual current more than the fixedvalue, theleakage breaker
contact us0086-15306888555
Earth leakage Circuit Breaker is a multi-functional protection devicesused to protect against electrical leakage in the circuit of 50/60Hz, rated voltage 230/400V,rated current up to 63A. When electirc shock happens or the residual current more than the fixed value, theleakage breakercan cut off the power within 0.1s automatically protecting the personal safety and preventing theequipmentfrom the fault resulted from the residual current.
Soit can protect the circuit against overload, short circuit and electrical leakage.
Main technical data
· | 1P+N, 2P, 3P, 3P+N, 4P |
Type | AC |
Rated current In A | 6,10,16,20,25,32,40,50,63 |
Rated voltage Ue V | 230/400 |
Rated sensitivity I△n A | 0.03, 0.05, 0.1, 0.3 |
Rated short-circuit capacity Icn | 3000, 4500 |
Breaking time under I△n s | ≤0.1 |
Rated frequency Hz | 50/60 |
Electrical and Mechnical life | 2000 |
Ambient temperature ℃ | -5~40 |
The over-current protection property
Ambient Temperature | Initial Status | Test Current | Expected Result | Expected Result | Note |
40±2℃ | Cold position | 1.05In(In≤63A) | t≤1h | Non-release | - |
Cold position | 1.05In (In[63A) | t≤2h | Non-release | - | |
Carried out immedi-ately after previous test | 1.30In(In≤63A) | t < 1h | Release | Current smoothly rises to specified value within 5s | |
1.30In (In>63A) | t< 2h | Release | |||
-5~+40℃ | Cold position | 8.00In | t≤0.2s | Non-release | - |
Cold position | 12.00In | t < 0.2s | Non-release | - |
