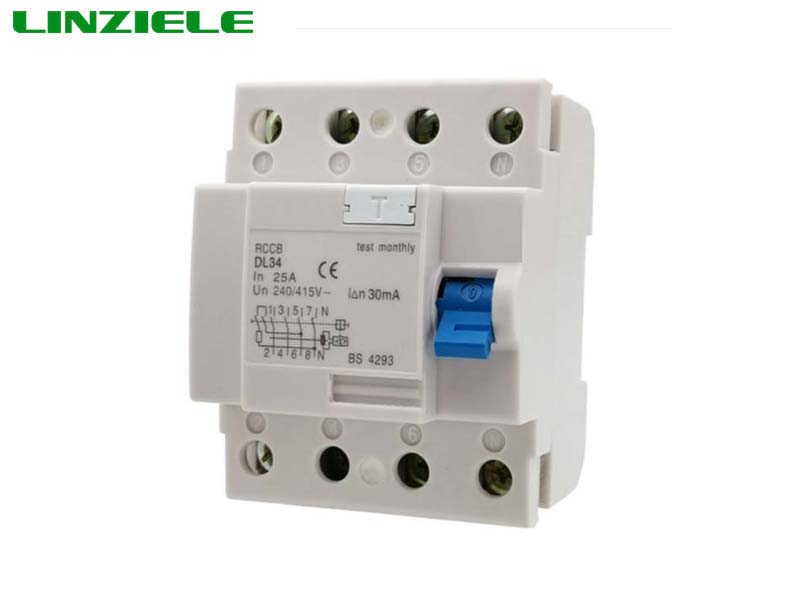

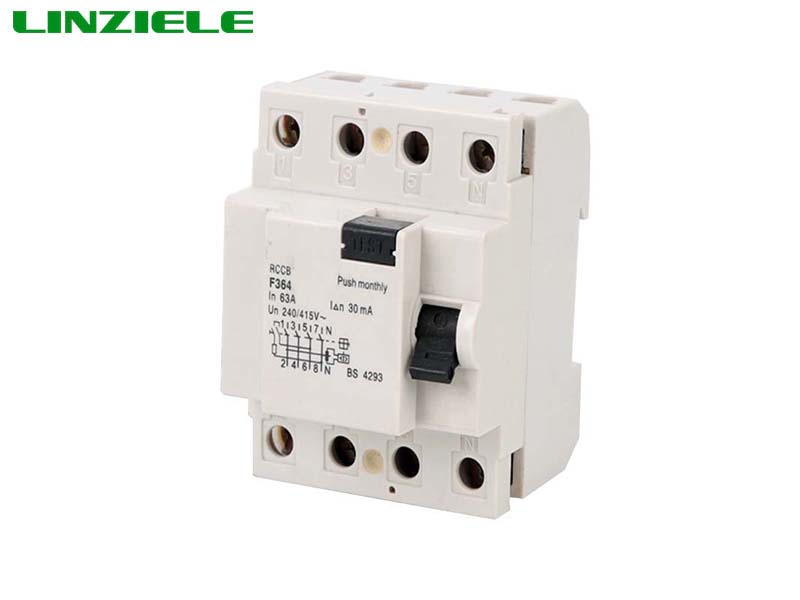

The RCCB is in compliance with standard of IEC61008. It can cutoff fault circuit immediately on the occasion of shock hazard or earth leakage of thunk. Thus, it is suitable to avoid the shock hazard and fire caused by earth leakage.
The RCCB is mainly suitable for use in varieties of plants and enterprises, building construction 1 phase 230V and 3 phase 400V 50/60Hz. The RCCB is not suitable for use on DC pulse system.
Application
Poles | 2P,4P |
Rated Current(A) | 16, 20, 25, 32, 40, 50, 63 |
Rated Residual Operating current(mA) | 10, 30 , 100, 300 |
Rated Voltage(V) | AC 230/240 DC230/240 |
AC 400/415 DC400/415 | |
Residual Operating Current Scope | 0.5IΔn~1IΔn |
Residual Current Off-time | ≤0.3S |
Short Circuit Capacity(Icu) | 3000A |
Endurance | 4000 times |
Protection Degree | IP20 |

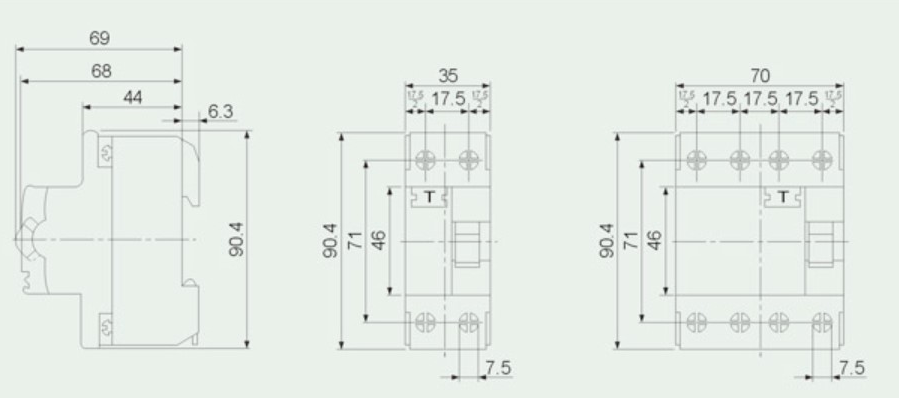

Mounting dimension
