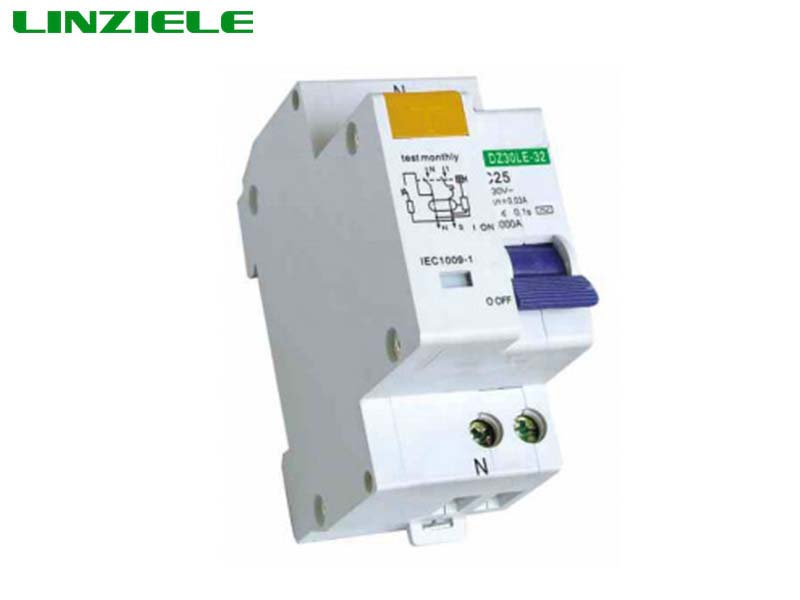

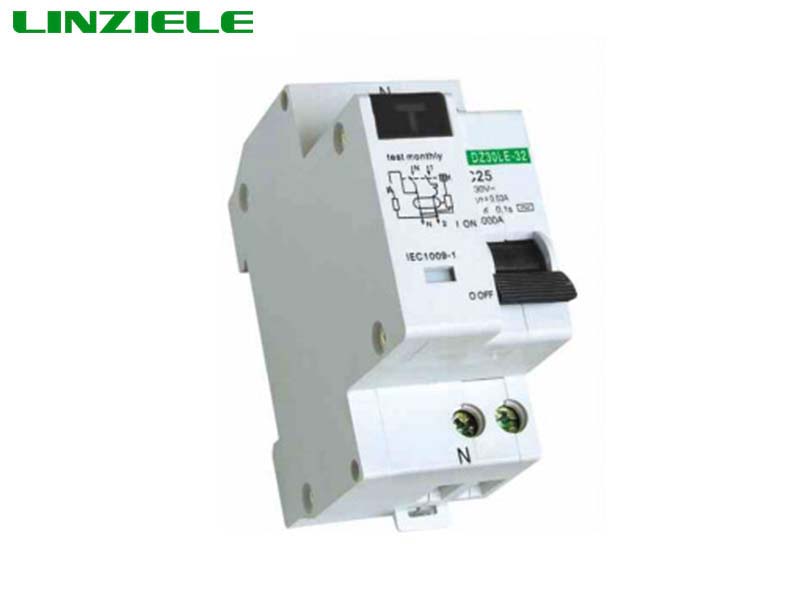

The product is applicable to protect line conductor and overload and short circuit of small sealed motors. It is mainly for protection of circuit with AC 220V and 50/60Hz, and for infrequent conversion under normal conditions as well. Its action can be up to two pole with only one pole volume and be used as a leakage breaker byassembing with leakage. It comply with IEC60898 standard.
Application
Model | DZ30 DPN |
Function | Short circuit protection, overload protection, earth leakage protection |
Rated current | 6,10,16,20,25,32 |
Rated voltage | 230/400V |
Short circuit breaking cap | 3KA |
Standard | IEC60898 |
Pole | 2P |
Electrical life | 4000 |
Mechanical life | 10000 |
Installation | IP20 |
（）Ambient Temperature | -5~+40 |
Altitude（8） | ≤2000 |
Installation environment | No significant vibration and shock |
Installation method | DIN rail |
Outline dimention(mm) | Width:36 |
Length:79 | |
Height:76 | |

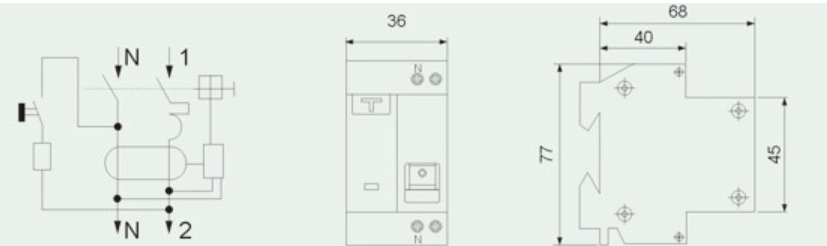

Dimension size
