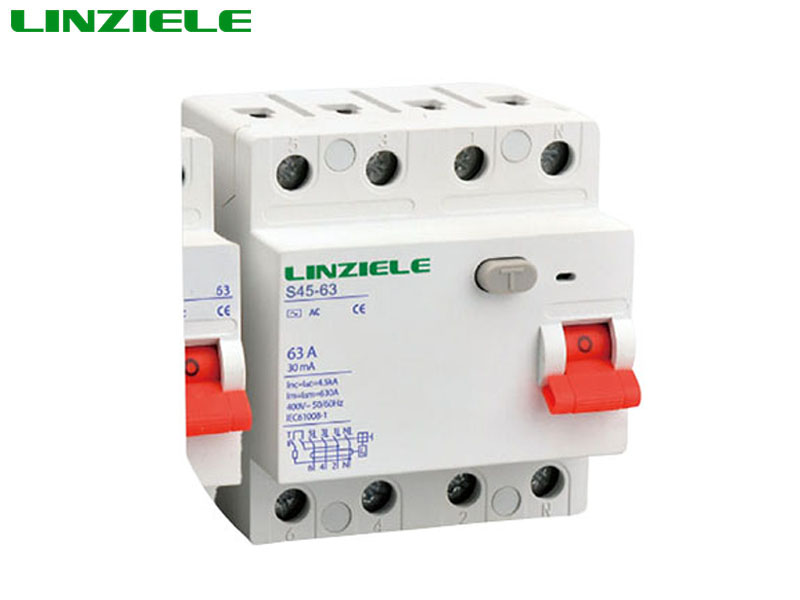

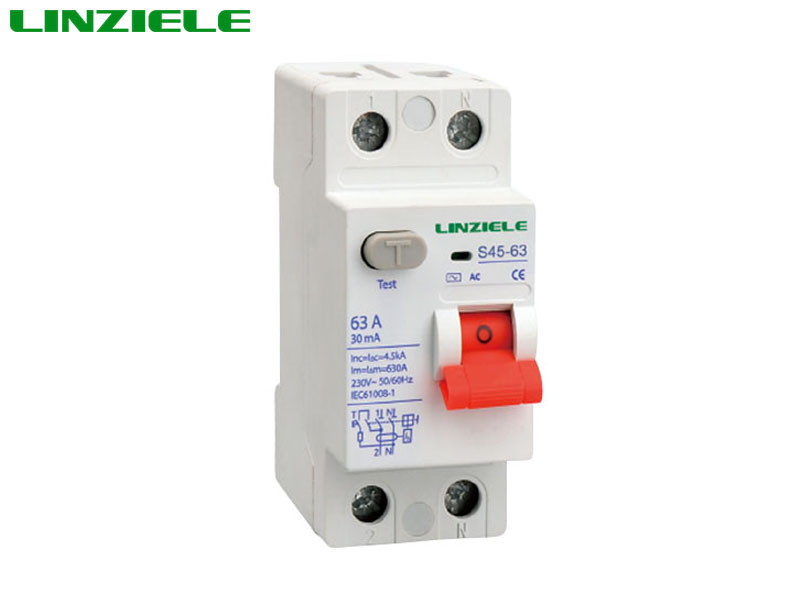

RESIDUAL CURRENT CIRCUIT BREAKER

visit：132time：2023-02-27 13:59:17

Residual Current Circuit Breaker is an ideal protection device against different leakage currents in applications of elevators, PV inverters, medical equipment UPS devices, charging facilities, etc.Technical dataRated current16-63ARated frequency50/60HzRated residual operation current30,100,300mACom

Number of hits：【132】Release time：【2023-02-27 13:59:17】

contact us0086-15306888555

Residual Current Circuit Breaker is an ideal protection device against different leakage currents in applications of elevators, PV inverters, medical equipment UPS devices, charging facilities, etc.

Technical data

Rated current	16-63A
Rated frequency	50/60Hz
Rated residual operation current	30,100,300mA
Comply with	IEC61008-1
Type	Residual current
No of poles	2P,4P
Rated voltage	230/400V
Rated short circuit current	6000A
Operating characteristics	AC/A type
